BOSCH Digital Conference System DCN

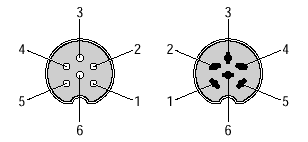

Connector (6-pin, DIN 45322):
Pin 1 Shielding for Downlink, Ground
Pin 2 Receive, Downlink (cable: green)
Pin 3 < +40 V (cable: brown/blue)
Pin 4 Transmit, Uplink (cable: white)
Pin 5 Shielding for Uplink, Ground
Pin 6 < +40 V (cable: brown/blue)

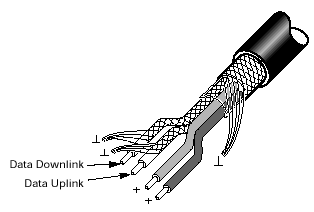

DCN-Cable:
